OAuth 2.0 Authorization Code Grant

The Authorization Code Grant requests an authorization code that can be exchanged for an ID token and access token. Tokens are never exposed to the user agent, preventing interception. The flow requires the client to interact with the resource owner's user agent (typically a web browser) to complete authentication.

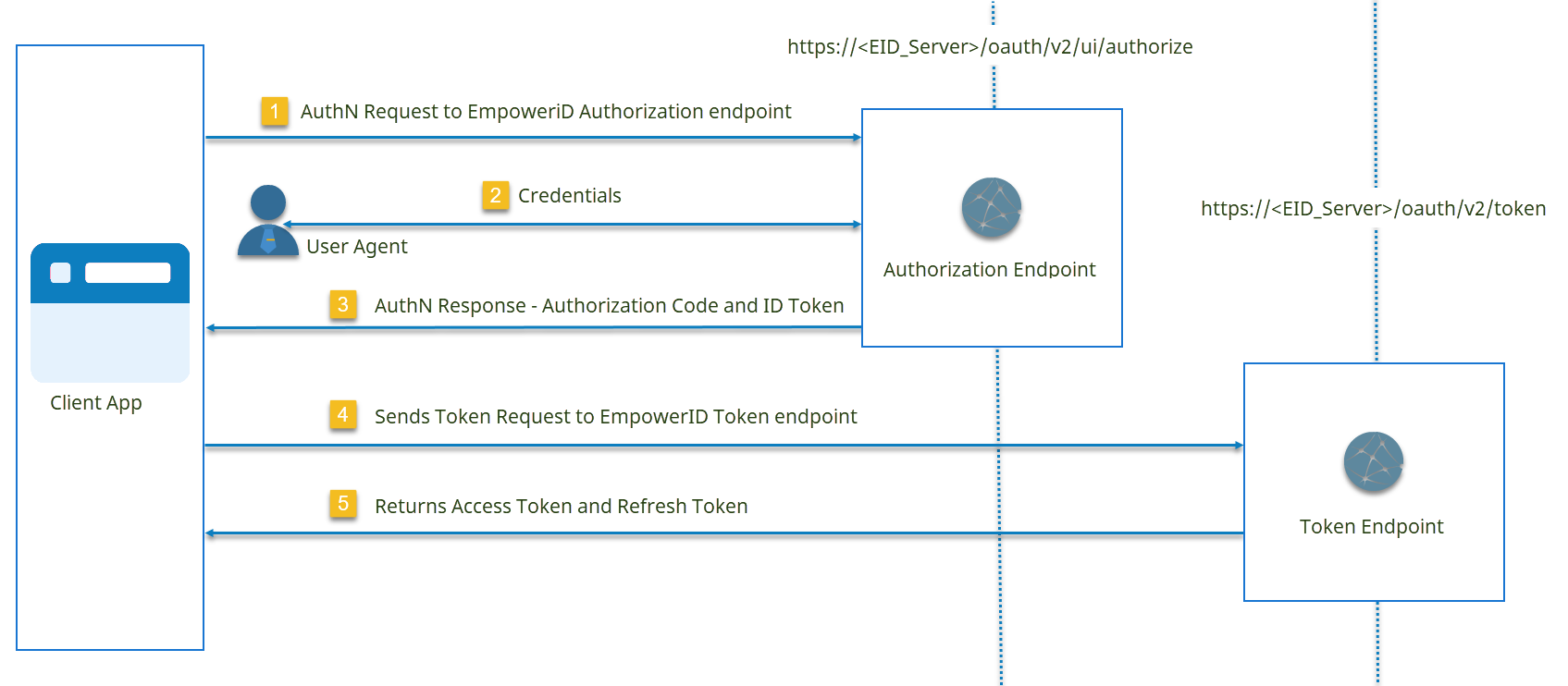

Authorization Code Grant Flow

The OAuth 2.0 Authorization Code Grant flow in EmpowerID:

Flow Steps

1. Initiate Authorization Request - Direct the user agent to the Authorization endpoint (https://<EID Server>/oauth/v2/ui/authorize) with required parameters:

   • response_type: Set to code for authorization code flow
   • client_id: Client application identifier
   • scope: Space-separated list of permissions (e.g., openid)
   • redirect_uri: Callback URL for post-authentication redirect
   • Optional: state (CSRF prevention) and nonce (replay attack mitigation)

2. User Authentication - The resource owner submits credentials via the authorization server's login form. Authentication methods include username/password, external identity providers, or multi-factor authentication.

3. Authorization Code Issued - The authorization server redirects to the redirect_uri with an authorization code and optional id_token in the query parameters.

4. Token Request - Exchange the authorization code for tokens via a back-channel request to the Token endpoint (https://<EID Server>/oauth/v2/token) with:

   • grant_type: Set to authorization_code
   • client_id: Client application identifier
   • client_secret: Client application secret
   • code: Authorization code from Step 3

5. Token Response - After validating credentials, the authorization code, and the redirect_uri, the authorization server issues an access token and refresh token.

tip

Download sample .NET Framework code:

https://dlempowerid.blob.core.windows.net/files/OAuthTestSampleCode.zip?sp=r&st=2024-02-02T14:42:35Z&se=2027-03-30T22:42:35Z&spr=https&sv=2022-11-02&sr=b&sig=l8mGw3b6%2Br5aQNtEh966Ya2U7G7067Q7NKw2tgEfspk%3D

Authorization Code Grant

1. Send authorization request to https://<EID Server>/oauth/v2/ui/authorize

   https://<EID Server>/oauth/v2/ui/authorize
   ?client_id=xxxxxxxxxxxxxxxxxx
   &redirect_uri=https%3A%2F%2Ftestoauthapp.com%2FcallbackUrl
   &response_type=code
   &scope=openid
   &state=xxxxxxxxxxxxxxxxxx
   &nonce=xxxxxxxxxxxxxxxxxx

   Request Parameter	Required/Optional	Description
   response_type	required	Set to code for authorization code flow. Use code id_token for OpenID Connect.
   client_id	required	EmpowerID OAuth application client identifier
   redirect_uri	required	Callback URL registered in the EmpowerID OAuth application
   scope	required	Space-separated permission list. Include openid for OpenID Connect.
   state	optional	Random string for session maintenance and CSRF prevention
   nonce	optional	Random string for request identification

2. Authenticate using username/password or an external identity provider.

3. Authorization server redirects to redirect_uri with response parameters:

   https://testoauthapp.com/callbackUrl
   ?state=xxxxxxxxxxxxxxxxxx
   &code=xxxxxxxxxxxxxxxxxx
   &id_token=xxxxxxxxxxxxxxxxxx

   Response Parameter	Description
   state	Session value from client request
   code	Authorization code from authorization server
   id_token	Identity token (OpenID Connect flow only)

4. Exchange code for access token at https://<EID Server>/oauth/v2/token

   https://<EID Server>/oauth/v2/token
   ?client_id={The Client ID of the OAuth app you registered in EmpowerID}
   &client_secret={The Client Secret of the OAuth app you registered in EmpowerID}
   &grant_type=authorization_code
   &code=xxxxxxxxxxxxxxxxxx

   Request Parameter	Required/Optional	Description
   grant_type	required	Set to authorization_code
   client_id	required	EmpowerID OAuth application client identifier
   client_secret	required	EmpowerID OAuth application client secret
   code	required	Authorization code from authorization server

5. Token response:

   {
     "access_token": "xxxxxxxxxxxxxxxxxxxxxx",
     "token_type": "Bearer",
     "expires_in": 3600,
     "refresh_token": "xxxxxxxxxxxxxxxxxxxxxx",
     "id_token": "xxxxxxxxxxxxxxxxxxxxxx",
     "id": "xxxxxxxxxxxxxxxxxxxxxx"
   }

Authorization Code Grant using .NET Client Library

1. Initialize ClientSettings and AuthorizationCodeGrant:

   var clientSettings = new ClientSettings(
       "client_id",
       "client_secret",
       "redirect_uri",
       "https://<EID Server>/oauth/v2/token",
       "https://<EID Server>/oauth/v2/ui/authorize",
       "https://<EID Server>/oauth/v2/tokeninfo",
       "https://<EID Server>/oauth/v2/userinfo");

   var handler = new AuthorizationCodeGrant(clientSettings);

2. Build authorization request parameters using BuildAuthorizationRequestPacket():

   //Generate random nonce and state
   var nonce = Guid.NewGuid().ToString("N");
   var state = Guid.NewGuid().ToString("N");

   //Build parameters for "code" flow
   var parameters = handler.BuildAuthorizationRequestPacket
   (ParameterFormat.FormUrlEncoded, state, null, nonce, null);

   //Build parameters for "code id_token" flow
   var responseTypes = new List<ResponseType> { ResponseType.id_token };
   var parameters = handler.BuildAuthorizationRequestPacket
   (ParameterFormat.FormUrlEncoded, state, "openid", nonce, responseTypes);

   //Generate redirect URL
   var redirectUrl = string.Format("{0}?{1}", clientSettings.AuthorizeUrl, parameters);
   3. In the callback method, extract code and state, then request tokens:

   public ActionResult AuthorizationCodeGrantResponse(AuthorizationResponseModel model)
   {
     AuthorizationResponseModel authorizationResponseModel = new AuthorizationResponseModel() {Code = "xxxxxxx", State = state};
     AccessTokenResponseModel tokenResponseModel = null;
     try
     {
         tokenResponseModel = handler.GetAccessToken<AccessTokenResponseModel>(
             RequestMethod.POST,
             ParameterFormat.FormUrlEncoded,
             authorizationResponseModel,
             false);
     }
     catch {  //Handle error   }
   }

Authorization Code Grant with PKCE (Proof Key for Code Exchange)

1. Send authorization request to https://<EID Server>/oauth/v2/ui/authorize

   https://<EID Server>/oauth/v2/ui/authorize
   ?client_id=xxxxxxxxxxxxxxxxxx
   &redirect_uri=https%3A%2F%2Ftestoauthapp.com%2FcallbackUrl
   &response_type=code
   &state=xxxxxxxxxxxxxxxxxx
   &nonce=xxxxxxxxxxxxxxxxxx
   &scope=openid
   &code_challenge=xxxxxxxxxxxxxxxxxx
   &code_challenge_method=S256

   Request Parameter	Required/Optional	Description
   response_type	required	Set to code for authorization code flow. Use code id_token for OpenID Connect.
   client_id	required	EmpowerID OAuth application client identifier
   redirect_uri	required	Callback URL registered in the EmpowerID OAuth application
   scope	required	Space-separated permission list. Include openid for OpenID Connect.
   code_challenge_method	recommended	Transformation method: plain or S256. Defaults to plain.
   code_challenge	required	Derived from code_verifier: - plain: code_challenge = code_verifier - S256: code_challenge = BASE64URL-ENCODE(SHA256(ASCII(code_verifier))) See PKCE RFC for code verifier generation.
   state	optional	Random string for session maintenance and CSRF prevention
   nonce	optional	Random string for request identification

2. Authenticate using username/password or an external identity provider.

3. Authorization server redirects to redirect_uri with response parameters:

   https://testoauthapp.com/callbackUrl
   ?state=xxxxxxxxxxxxxxxxxx
   &code=xxxxxxxxxxxxxxxxxx
   &id_token=xxxxxxxxxxxxxxxxxx

   Response Parameter	Description
   state	Session value from client request
   code	Authorization code from authorization server
   id_token	Identity token (OpenID Connect flow only)

4. Exchange code for access token at https://<EID Server>/oauth/v2/token

   https://<EID Server>/oauth/v2/token
   ?client_id={The Client ID of the OAuth app you registered in EmpowerID}
   &client_secret={The Client Secret of the OAuth app you registered in EmpowerID}
   &grant_type=authorization_code
   &code=xxxxxxxxxxxxxxxxxx
   &code_verifier=xxxxxxxxxxxxxxxxxx

   Request Parameter	Required/Optional	Description
   grant_type	required	Set to authorization_code
   client_id	required	EmpowerID OAuth application client identifier
   client_secret	required	EmpowerID OAuth application client secret
   code	required	Authorization code from authorization server
   code_verifier	required	Code verifier from initial authorization request

5. Token response:

   {
     "access_token": "xxxxxxxxxxxxxxxxxxxxxx",
     "token_type": "Bearer",
     "expires_in": 3600,
     "refresh_token": "xxxxxxxxxxxxxxxxxxxxxx",
     "id_token": "xxxxxxxxxxxxxxxxxxxxxx",
     "id": "xxxxxxxxxxxxxxxxxxxxxx"
   }

Authorization Code Grant with PKCE using .NET Client Library

1. Initialize ClientSettings and AuthorizationCodeGrant:

   var clientSettings = new ClientSettings(
       "client_id",
       "client_secret",
       "redirect_uri",
       "https://<EID Server>/oauth/v2/token",
       "https://<EID Server>/oauth/v2/ui/authorize",
       "https://<EID Server>/oauth/v2/tokeninfo",
       "https://<EID Server>/oauth/v2/userinfo");

   var handler = new AuthorizationCodeGrant(clientSettings);

2. Build authorization request with PKCE using BuildAuthorizationRequestPacketWithPKCE():

   //Generate random nonce and state
   var nonce = Guid.NewGuid().ToString("N");
   var state = Guid.NewGuid().ToString("N");

   //Generate code_verifier
   var unreservedChars = "ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz0123456789.-_`";
   Random random = new Random();
   var code_verifier = new string(Enumerable.Repeat(unreservedChars, 43).Select(s => s[random.Next(s.Length)]).ToArray());

   //Store code_verifier (e.g., in cookie)
   CookieHelper.SetCookieData("OAuthCodeVerifier", code_verifier);

   //Generate code_challenge (plain method)
   //var code_challenge = code_verifier;
   //var code_challenge_method = "plain";

   //Generate code_challenge (S256 method)
   var bytes = new SHA256CryptoServiceProvider().ComputeHash(Encoding.ASCII.GetBytes(code_verifier));
   var code_challenge = Convert.ToBase64String(bytes).Split('=')[0].Replace('+', '-').Replace('/', '_');
   var code_challenge_method = "S256";

   //Build parameters for "code" flow
   var parameters = handler.BuildAuthorizationRequestPacketWithPKCE
   (ParameterFormat.FormUrlEncoded, state, null, nonce, code_challenge, code_challenge_method, null);

   //Build parameters for "code id_token" flow
   //var responseTypes = new List<ResponseType> { ResponseType.id_token };
   //var parameters = handler.BuildAuthorizationRequestPacketWithPKCE
   //(ParameterFormat.FormUrlEncoded, state, "openid", nonce, code_challenge, code_challenge_method, responseTypes);

   //Generate redirect URL
   var redirectUrl = string.Format("{0}?{1}", clientSettings.AuthorizeUrl, parameters);

3. In the callback method, extract code and state, retrieve code_verifier, then exchange for tokens:

   public ActionResult AuthorizationCodeGrantWithPKCE(AuthorizationCodeGrantViewModel model)
   {
     AuthorizationResponseModel authorizationResponseModel = new AuthorizationResponseModel() {Code = "xxxxxxx", State = state};

     //Retrieve stored code_verifier
     var code_verifier = CookieHelper.GetCookieData("OAuthCodeVerifier");

     var additionalParams = new Dictionary<string, string>();
     additionalParams["code_verifier"] = code_verifier;

     AccessTokenResponseModel tokenResponseModel = null;
     try
     {
         tokenResponseModel = handler.GetAccessToken<AccessTokenResponseModel>(
             RequestMethod.POST,
             ParameterFormat.FormUrlEncoded,
             authorizationResponseModel,
             false,
             null,
             additionalParams);
     }
     catch {  //Handle error   }
   }
