OpenID Connect

OpenID Connect (OIDC) is an identity layer that sits on top of the OAuth 2.0 protocol for the purpose of authenticating users needing to access protected APIs. OIDC does not provide authorization; that is handled by an OAuth 2.0 flow that presents the authenticated identity to an authorization server. In OIDC, the mechanism for delivery of the identity information is a security token, known as an "ID Token." The ID Token contains authentication claims about a user as a JSON Web Token (JWT). When delivered by EmpowerID, the claims payload is an ID Token that looks similar to that shown below. Note that more or less claims could be in the token.

{
  "iss": "EmpowerID",
  "sub": "khmcclure",
  "aud": "5c168a71-d47b-4321-bdba-648984e99521",
  "iat": 1597961104,
  "nbf": 1595282704,
  "exp": 1600639504,
  "oid": "9b592c74-c014-4536-bfac-f706a4c8d89f",
  "name": "Kris McClurring",
  "email": "kris.mcclurring@eiddocs.onmicrosoft.com",
  "azp": "5c168a71-d47b-4321-bdba-648984e99521",
  "at_hash": "EJ04K1puK2OfKrouc_7t_g",
  "c_hash": "3sEvqXZmp2hillFqkfwEZg",
  "jti": "66054b39-9ce2-49be-88b4-b1bd0aa39bfa"
}

The definition of the claims in the above token are as follows:

Claim Type	Value	Description
`iss`	EmpowerID	Identifies the entity that issued the token. See OAuth 2.0 Authorization framework, section 4.1.1 for more information about this claim type.
`sub`	khmcclure	Identifies the principal that is the subject of the token. See OAuth 2.0 Authorization framework, section 4.1.2 for more information about this claim type.
`aud`	5c168a71-d47b-4321-bdba-648984e99521	Identifies the recipients for which the token is intended. See OAuth 2.0 Authorization framework, section 4.1.3 for more information about this claim type.
`iat`	1597961104	Identifies the time EmpowerID issued the token. See OAuth 2.0 Authorization framework, section 4.1.6 for more information about this claim type.
`nbf`	1595282704	Identifies the time before which the token MUST NOT be accepted for processing. See OAuth 2.0 Authorization framework, section 4.1.5 for more information about this claim type.
`exp`	1600639504	Identifies the expiration time on or after which the token MUST NOT be accepted for processing. See OAuth 2.0 Authorization framework, section 4.1.4 for more information about this claim type.
`oid`	9b592c74-c014-4536-bfac-f706a4c8d89f	Person GUID that uniquely identifies the subject of the token in EmpowerID.
`name`	Kris McClurring	Full name of the token subject.
`email`	`kris.mcclurring@eiddocs.onmicrosoft.com`	Email address of the token subject registered in EmpowerID.
`azp`	5c168a71-d47b-4321-bdba-648984e99521	The authorized party to whom the token was issued.
`at_hash`	EJ04K1puK2OfKrouc_7t_g	Access token hash value. Used to provide validation that the access token is tied to the identity token.
`c_hash`	3sEvqXZmp2hillFqkfwEZg	Authorization code hash value. Used to provide validation that the authorization code is tied to the identity token.
`jti`	66054b39-9ce2-49be-88b4-b1bd0aa39bfa	GUID that uniquely identifies the token. See OAuth 2.0 Authorization framework, section 4.1.7 for more information about this claim type.

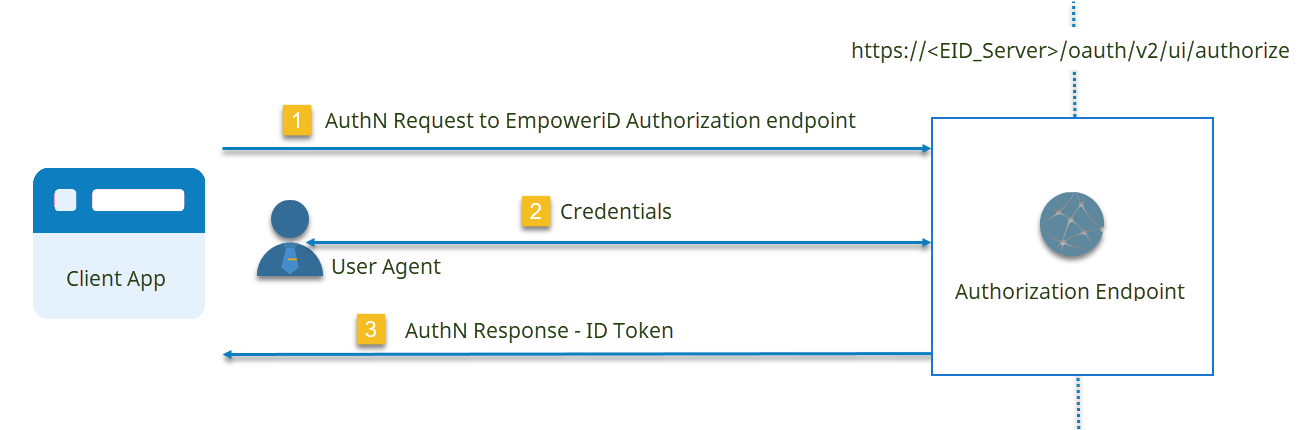

The sequence for authenticating using OIDC looks like that shown in the following image. As OIDC is used in OAuth 2.0 flows, the image is incomplete in that it only depicts the authentication stage of the flow. A more complete presentation of what occurs when using OpenID Connect in an OAuth 2.0 grant in EmpowerID is shown in the OAuth 2.0 Authorization Code Grant.
